Hot sale satellite dish positioner/welding positioner /smart positioner

FOB Reference Price:Get Latest Price
US $500-1,200 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
Qingdao or Tian jin port
Report Suspicious Activity
Overview
Quick Details
Type:
Welding Positioner
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
North
Model Number:
BY-50
Usage:
welding and cutting
Dimensions:
660*540*740mm
Weight:
45kg
Certification:
CE
After-sales Service Provided:
Overseas service center available
Color:
red blue yellow green
Service:
OEM is available
Power Input:
AC110V/220V 50/60Hz
Capacity:horizontal/vertical:
50Kg/25Kg
Table Dimension:
315mm
Table Height:
375mm
Rotation Speed:
7/15rpm
Tilt Range:
0/90°
Tilt Mode:
Manual
Rotation Motor:
80W
Packaging & Delivery
Packaging Details
we choose standard Export packaging : ply wood and plastic bags





Hot sale  satellite dish positioner/welding positioner /smart positioner

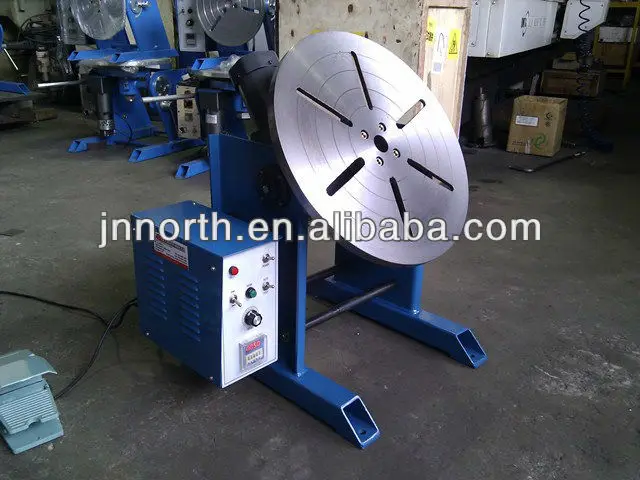

Description of  BY-50/100T HOT SALE HIGH QUALITY INDUSTRY WELDING POSITIONER
 1.This welding positioner make the workpiece at the best welding and fitting position , can become a real automatic welding machine cooperating with the manpulator .can also be the peripheral equipment of the robot and achieve the automation of the welding with the robot , and can also design and produce all kinds of special welding positioner according to different workpiece and technological requirements .

 2.Welding positioner means the machines used to change the position of workpieces on the table and to ensure smooth rotation of the workpieces at certain required speed.

3.Postitioner normally means (1)a table turning mechanism, and (2)table tilting mechanism.





HOT SALE HIGH QUALITY INDUSTRY WELDING POSITIONER









main charaters of BY series welding positioner/welding table/turn table:

1. BY Light welding positioner drive by the DC servo-motor having constant torque output property, which realize the turning table works smoothly, and welding speed is continous adjustment in large scale.
2. The three-jaw chuck is easliy equipped and can be exchanged with other especial clamps.
3. Adopting the simplest connection way between clamps and working table.
4. Adopting food control switch makes the operation easliy and efficiently.





the specifications of 50 kg welding positioner/welding table/turn table

Model

BY-50

Power Input

AC110V/220V 50/60Hz

Capacity:horizontal/vertical

50Kg/25Kg

Table Dimension

315mm

Table Height

375mm

Rotation Speed

7/15rpm

Tilt Range

0/90°

Tilt Mode

Manual

Rotation Motor

80W

Over Dimension

430*430*375mm





the specifications of 100 kg

Hot sale  satellite dish positioner/welding positioner /smart positioner









Model

BY-100

Power Input

AC110V/220V  50/60Hz

Capacity horizontal/vertical

100Kg/50Kg

Table Dimension

345mm

Table Height

415mm

Rotation Speed

1~7/15rpm

Tilt Range

0/90°

Tilt Mode

Manual

Rotation Motor

120W

Over Dimension

500*470*415mm





Hot sale  satellite dish positioner/welding positioner /smart positioner







 avaliable welding chuckk : C-165 , D-200, D-300, D-400, D-600
